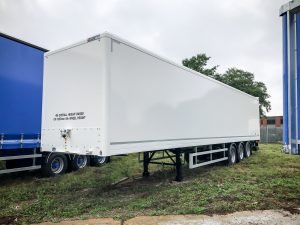

Box Van Trailer

Lawrence David’s Box Van Trailers are proven in parcel delivery, supermarket and rental sectors. We have the capability to adapt our trailers to suit the nature of your operation – it’s one of the reasons we offer a bespoke design service.

Red-Box-Van-Trailer-Tri-Axle-Side-View-1300x500px

Designed and manufactured to align with Type Approval Requirements and operating under a quality management system that conforms to the standards of ISO 9001:2015, we can customise a solution to help drive down your costs and increase profitability.

With choices ranging from Glass Reinforced Plywood (GRP) to 8mm thin-wall steel panelling, our Box Van Trailers are built to withstand the demands of a rigorous operation without compromising strength or durability. They are engineering and manufactured to the same high standards of quality Lawrence David are known for.

Thin Wall Panelling

From the options you have, we can increase the internal load space by up to 24mm – which allows you to squeeze every little bit of payload from your trailer. The beauty of our solutions is that in the event your body is damaged, the panels are easier to replace – which reduces the time it’s off the road.

Load Securing

We offer a variety of load securing options for our Box Van Trailers. You can choose from LoadLok 1806, Tie-Rails or 3009 Combi-Track and that’s just a small selection. Ultimately, your operation dictates our solutions.

Coupling Options

At Lawrence David we offer three types of coupling – Fixed, Sliding or our exclusive Curved Coupling. If you care about getting the most out of your trailers, we recommend the Curved Coupling – designed with health, safety and efficiency in mind.

Minimal External Fixings

We believe that the quality of the finish matters as much as the quality of the build. With minimal fixings, there’s less opportunity for water ingress which will naturally improve the lifespan of the trailerOur aim is to offer high quality aesthetics, without sacrificing durability or quality.

Request a call from one of our sales specialists?

225mm-integral-kick-strip-blue-colour-stainless floor

Integral Steel 225mm Deep Kick Strip

225mm deep, the kick strip offers increased protection for the sidewalls of the trailer against pallets, roll cages and MUs.  It can’t be ripped off as it’s welded to the trailer’s cross members for maximum strength.

500mm-Trailer-Upstand

500mm Front Trailer Upstand

Designed to stop pallets from ‘popping’ the front bulkhead, this upstand offers greater structural integrity to protect your trailer from wear and tear.


Quality Management Systems

All our products are designed and manufactured to align with Type Approval requirements.  We operate under a quality management system that conforms to the standards of ISO 9001:2015.


Steel Bottom Corner Protection Plate

Helps reduce damage to corner capping as it is the first point of contact underneath the trailer.


External Fit Front Corner Cappings

We don’t rely on the strength of capping alone.  Our rigid box van trailers have an internal skeleton of steel gussets that are full height in the corners.

Alloy-Cappings-In-Variety-of-Colours

Powder Coated Alloy Cappings

The Powder Coating is etched into the alloy making it more resistant to damage and scratching.  It’s also rust-proof for added protection.


Reinforced Rear

Fully welded rear and end gussets result in a stronger body.  This means it’s more resistant to shocks taken through the chassis when dock loading.

Lawrence-David-Curved-Coupling-Unpainted

Coupling Options

At Lawrence David we offer three types of coupling – Fixed, Sliding or our exclusive Curved Coupling.  If you care about getting the most out of your trailers, we recommend the Curved Coupling – designed with health, safety and efficiency in mind.

75mm-Radius-Roof-Rails

75mm Radius Roof Rails

With a choice fibreglass or alloy roof skin, we guarantee no water ingress as they are fully sealed all around with alloy cappings.

3D Model Vent

Full 3D Solid Modelling & Design Database

Our 3D Solid Modelling software give us total control over the components used to build our bodies, so we know the parts fit right the first time.  We manufacture most components ourselves – quality comes guaranteed.


Interior Lights

Full length, low profile LED strip lighting gives an even distribution through the interior and will still operate in the event a small section is damaged.

Red-Double-Deck-Trailer-With-Open-Doors

Multiple deck options available

We offer a choice of Fixed Decks (as either a step-frame or straight-frame), Hydraulic Lifting Decks, or MUD Trailer Tri-Deck Suspension.  Your operation dictates our solutions.
